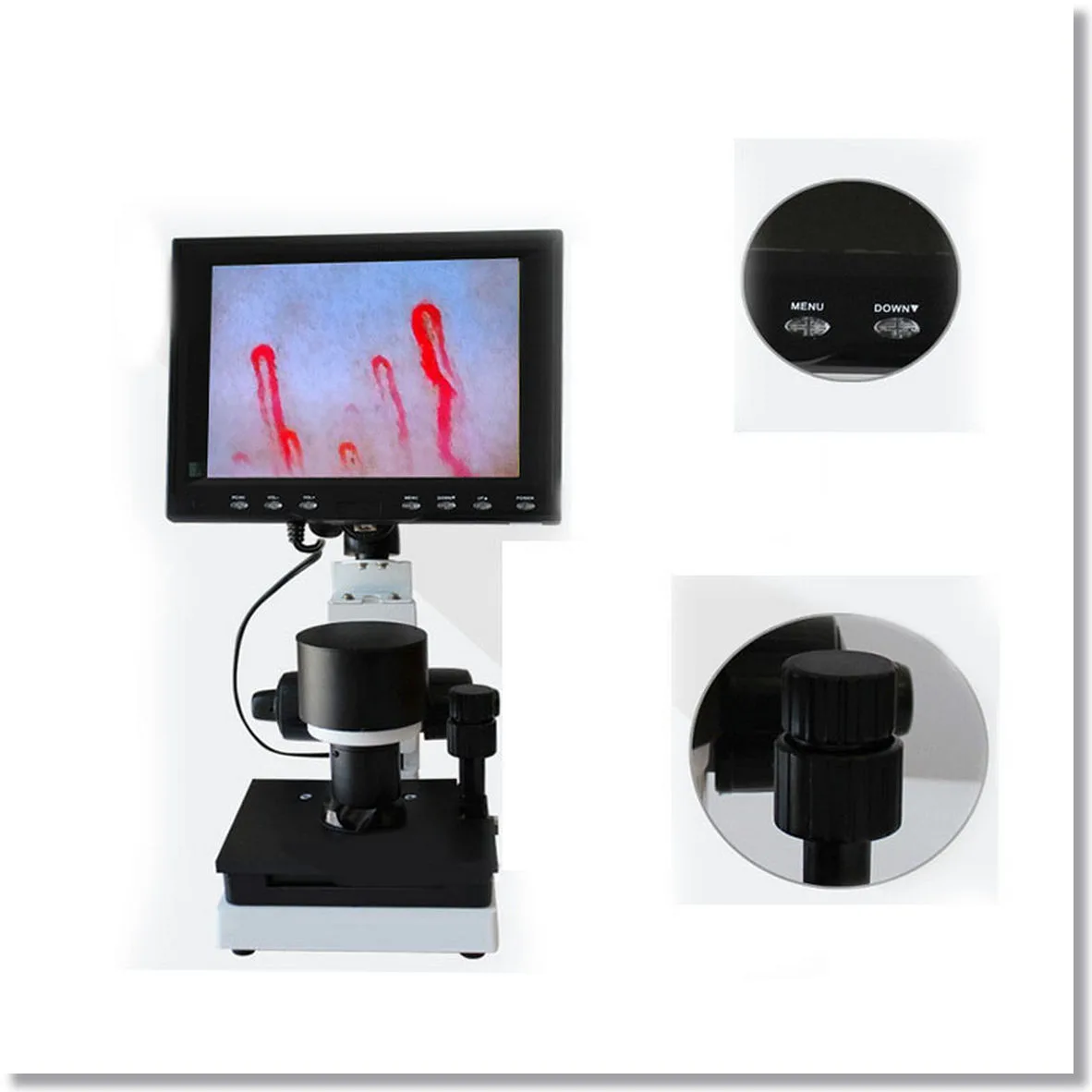

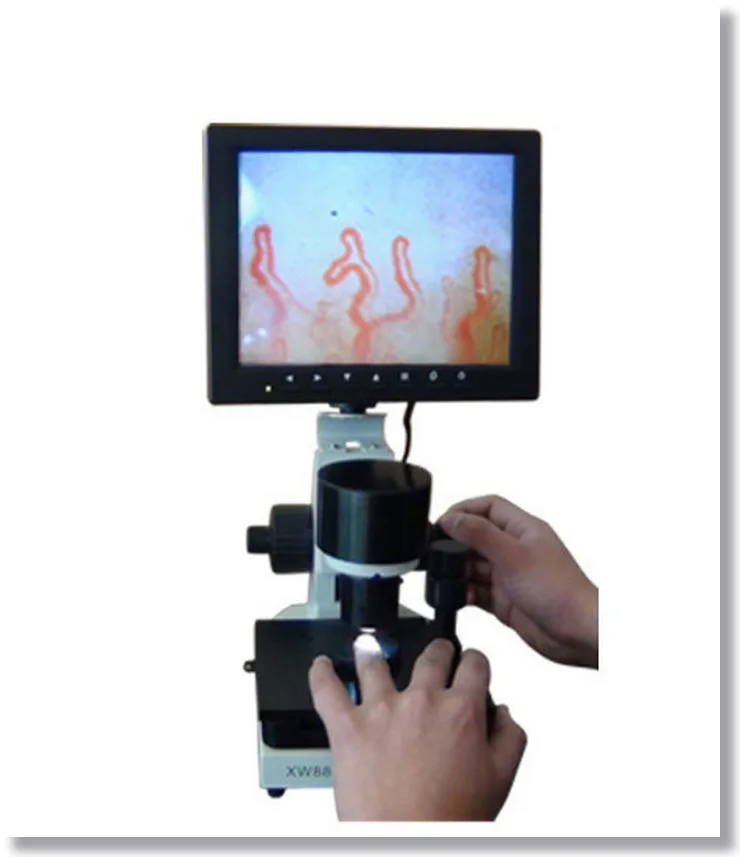

Medical Microcirculation Microscope

e third ,Main Technique parameter

1 Total effective enlarge multiple : > 380-fold

2 Achromatic objective: 5-fold, free working distance 25 mm

3 Vertically ascent and descent range:

coarse adjustment range:>25mm

trimming adjustment range:>25mm

4   Level travel:   a) the horizontal travel range: >20mm

b) the vertical travel range: >20mm

5 CMOS camera Power Supply: DC 12V

6 Camera: Horizontal resolution 480 line, Pixels. 500(the horizontal)*582(the vertica )

7 Liquid Crystal Display: Line 420 and voltage 12V

8 Category: model B,category I

The four

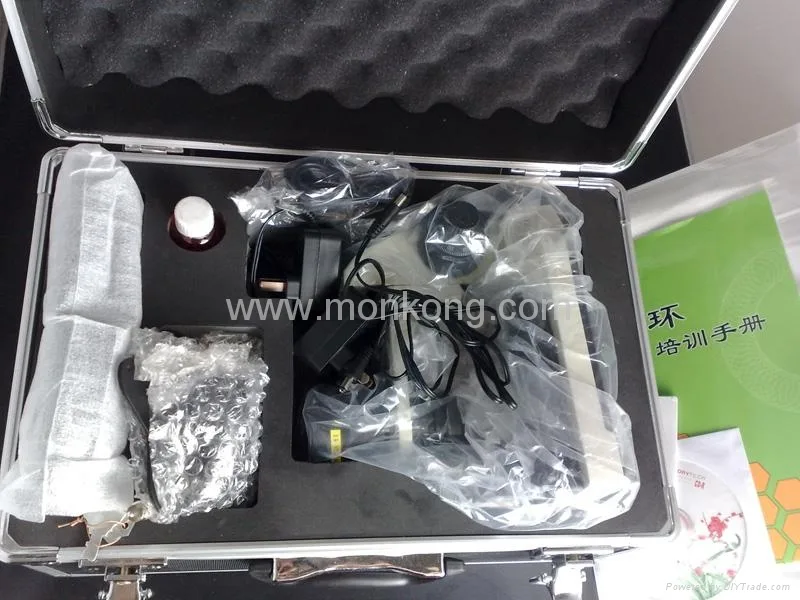

Packing List

Maintenance

1 The instrument should be put at the place where is cool, dry, and no dust and acid or alkali.

2 The relative humidity of air should be less than 60% when using. When moving the instrument in winter, if the temperature in two places is different comparatively, the instrument only can be used after it has adapted the temperature, so as to prevent from mould on the optics lens.

3 Keep the instrument clean.

1)        The temperature and humidity level should be stable. keep temperature level from 22°C24 °C, and 70% of humidity level.

2)        The inspector should be sit down , bring into the same height with heart and hand .

3)   Spread a little fragrant pitch on the nail fold.( The purpose to reduce scattering

,improve the transmittance of light)

4)        Check should be generally in the morning or afternoon, it had better do the review checking in the same time .

4 The Checking object.

1) Avoid Heavy activity an hour before the examination.

2) Have a rest an hour before the examination

3) Prohibit taking drugs which have influence of cardiovascular system before examination.

4) do not smoking,washing hands,eating an hour before examination

5) Take attention the influence of female menses
